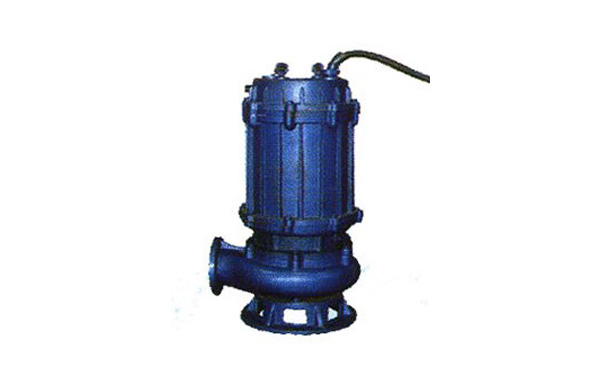

QW型潛污泵

點擊次數：109 更新時間2016-06-08 【關閉】分享:

口徑 mm	型號	流量 m3/h	揚程 m	轉速 r/min	功率 kw
25	25WQ2-10-0.37	2	10	2900	0.37
	25WQ4-10-0.55	4	10	2900	0.55
	25WQ6-10-0.75	6	10	2900	0.75
	25WQ6-15-1.1	6	15	2900	1.1
	25WQ10-15-1.5	10	15	2900	1.5
	25WQ10-20-2.2	10	20	2900	2.2
32	32WQ8-12-0.75	8	12	2900	0.75
	32WQ6-15-1.1	6	15	2900	1.1
	32WQ12-15-1.5	12	15	2900	1.5
	32WQ10-20-2.2	10	20	2900	2.2
40	40WQ10-10-0.75	10	10	2900	0.75
	40WQ8-15-1.1	8	15	2900	1.1
	40WQ8-20-1.5	8	20	2900	1.5
	40WQ12-15-1.5	12	15	2900	1.5
	40WQ15-20-2.2	15	20	2900	2.2
50	50WQ27-5-0.75	27	5	2900	0.75
	50WQ20-7-0.75	20	7	2900	0.75
	50WQ15-8-0.75	15	8	290	0.75
	50WQ10-10-0.75	10	10	2900	0.75
	50WQ10-12-1.1	10	12	2900	1.1
	50WQ33-7-1.1	33	7	2900	1.1
	50WQ40-7-1.5	40	7	2900	1.5
	50WQ25-10-1.5	25	10	2900	1.5
	50WQ20-15-1.5	20	15	2900	1.5
	50WQ15-15-1.5	15	15	2900	1.5
	50WQ10-18-1.5	10	18	2900	1.5
	50WQ15-20-2.2	15	20	2900	2.2
	50WQ15-18-2.2	15	18	2900	2.2
	50WQ15-25-2.2	15	25	2900	2.2
	50WQ27-15-2.2	27	15	2900	2.2
	50WQ30-14-2.2	30	14	2900	2.2
	50WQ42-9-2.2	42	9	2900	2.2
	50WQ30-10-2.2	30	10	2900	2.2
	50WQ20-22-3	20	22	2900	3
	50WQ25-18-3	25	18	2900	3
	50WQ15-30-3	15	30	2900	3
	50WQ25-20-4	25	20	2900	4
	50WQ30-18-4	30	18	2900	4
	50WQ40-15-4	40	15	2900	4
	50WQ20-30-5.5	20	30	2900	5.5
	50WQ25-25-5.5	25	25	2900	5.5
	50WQ20-40-7.5	20	40	2900	7.5
	50WQ25-35-7.5	25	35	2900	7.5
	50WQ30-30-7.5	30	30	2900	7.5
	50WQ30-40-7.5	30	40	2900	7.5
65	65WQ25-10-1.5	25	10	2900	1.5
	65WQ35-7-2.2	35	7	2900	2.2
	65WQ30-10-2.2	30	10	2900	2.2
	65WQ25-15-2.2	25	15	2900	2.2
	65WQ40-9-3	40	9	2900	3
	65WQ35-10-3	35	10	2900	3
	65WQ37-13-3	37	13	2900	3
	65WQ30-22-4	30	22	2900	4
	65WQ40-15-4	40	15	2900	4
	65WQ25-30-5.5	25	30	2900	5.5
	65WQ40-20-5.5	40	20	2900	5.5
	65WQ32-25-5.5	32	25	2900	5.5
	65WQ30-30-5.5	30	30	2900	5.5
	65WQ40-30-7.5	40	30	2900	7.5
	65WQ30-40-7.5	30	40	2900	7.5
	65WQ30-45-11	30	45	2900	11
	65WQ35-50-15	35	50	2900	15
	65WQ35-60-18.5	35	60	2900	18.5
80	80WQ40-7-2.2	40	7	1450	2.2
	80WQ35-9-2.2	35	9	1450	2.2
	80WQ30-12-2.2	30	12	1450	2.2
	80WQ50-7-3	50	7	2900	3
	80WQ45-10-3	45	10	2900	3
	80WQ43-13-3	13	13	2900	3
	80WQ40-15-4	40	15	2900	4
	80WQ65-10-5.5	65	10	2900	5.5
	80WQ50-20-5.5	50	20	2900	5.5
	80WQ40-25-5.5	40	25	2900	5.5
	80WQ30-30-5.5	30	30	2900	5.5
	80WQ65-25-7.5	65	25	2900	7.5
	80WQ80-15-7.5	80	15	2900	7.5
	80WQ40-30-7.5	40	30	2900	7.5
	80WQ30-40-7.5	30	40	2900	7.5
	80WQ50-35-11	50	35	2900	11
100	100WQ70-6-3	70	6	1450	3
	100WQ85-10-4	85	10	1450	4
	100WQ70-15-4	70	15	1450	4
	100WQ100-10-5.5	100	10	1450/2900	5.5
	100WQ65-15-5.5	65	15	1450/2900	5.5
	100WQ120-7-7.5	120	7	1450/2900	7.5
	100WQ100-10-7.5	100	10	1450/2900	7.5
	100WQ85-15-7.5	85	15	1450/2900	7.5
	100WQ80-20-7.5	80	20	1450/2900	7.5
	100WQ100-15-7.5	100	15	1450/2900	7.5
	100WQ100-20-11	100	20	1450/2900	11
	100WQ100-25-11	100	25	1450/2900	11
	100WQ120-25-15	120	25	1450/2900	15
	100WQ100-30-15	100	30	1450/2900	15
	100WQ120-30-18.5	120	30	1450/2900	18.5
	100WQ100-35-18.5	100	35	1450/2900	18.5
	100WQ100-40-22	100	40	1450/2900	22
150	150WQ150-7-7.5	150	7	1450	7.5
	150WQ145-9-7.5	1450	9	1450	7.5
	150WQ110-15-7.5	110	15	1450	7.5
	150WQ200-7-11	200	7	980	11
	150WQ150-12-11	150	12	1450	11
	150WQ200-10-15	200	10	1450	15
	150WQ180-15-15	180	15	1450	15
	150WQ180-20-18.5	180	20	1450	18.5
	150WQ150-26-18.5	150	26	1450	18.5
	150WQ180-25-22	180	25	1450	22
	150WQ200-20-22	200	20	1450	22
	150WQ240-20-30	240	20	1450	30
	150WQ200-25-30	200	25	1450	30
	150WQ150-35-37	150	35	1450	37
	150WQ180-30-37	180	30	1450	37
	150WQ180-40-45	180	40	1450	45
	150WQ200-38-45	200	38	1450	45
200	200WQ300-7-11	300	7	980	11
	200WQ250-11-15	250	11	1450	15
	200WQ300-8-15	300	8	1450	15
	200WQ250-15-18.5	250	15	1450	18.5
	200WQ300-9-18.5	300	9	1450	18.5
	200WQ400-10-22	400	10	1450	22
	200WQ360-12-22	360	12	1450	22
	200WQ300-15-22	300	15	1450	22
	200WQ450-10-30	450	10	1450	30
	200WQ400-13-30	400	13	1450	30
	200WQ300-18-30	300	18	1450	30
	200WQ250-22-33	250	22	1450	30
	200WQ450-15-37	450	15	1450	37
	200WQ300-25-37	300	25	1450	37
	200WQ400-20-45	400	20	1450	45
	200WQ350-25-45	350	25	1450	45
	200WQ250-35-45	250	35	1450	45
	200WQ450-22-55	450	22	1450	55
	200WQ400-25-55	400	25	1450	55
	200WQ300-40-55	300	40	1450	55
250	250WQ600-9-30	600	9	980	30
	250WQ600-12-37	600	12	980	37
	250WQ600-15-45	600	15	1450	45
	250WQ600-20-55	600	20	1450	55
	250WQ600-25-75	600	25	1450	75
	250WQ600-30-75	600	30	1450	75
300	300WQ800-7-30	800	7	980	30
	300WQ800-9-37	800	9	980	37
	300WQ800-12-45	800	12	1450	45
	300WQ680-15-45	680	15	1450	45
	300WQ800-15-55	800	15	1450	55
	300WQ600-20-55	600	20	1450	55
	300WQ800-20-75	800	20	1450	75
300	300WQ800-25-90	800	25	1450	90
	300WQ950-20-90	950	20	1450	90
	300WQ1000-25-110	1000	25	1450	110
350	350WQ1100-10-55	1100	10	980	55
	350WQ1180-13-75	1180	13	980	75
	350WQ1200-15-90	1200	15	980	90
	350WQ1200-20-110	1200	20	980	110
400	400WQ1800-7-55	1800	7	740	55
	400WQ1800-10-75	1800	10	740	75
	400WQ1800-12-90	1800	12	740	90
	400WQ2000-10-90	2000	10	740	90
	400WQ2000-13-110	2000	13	740	110
	400WQ200-15-132	2000	15	740	132
450	450WQ2300-10-90	2300	10	740	90
	450WQ2250-11-110	2250	11	740	110
	450WQ2260-14-132	2260	14	740	132
500	500WQ2500-10-110	2500	10	740	110
500	500WQ2500-16-160	2500	16	740	160
600	600WQ5400-8-185	5400	8	740	185
600	600WQ4000-12-200	4000	12	740	200
