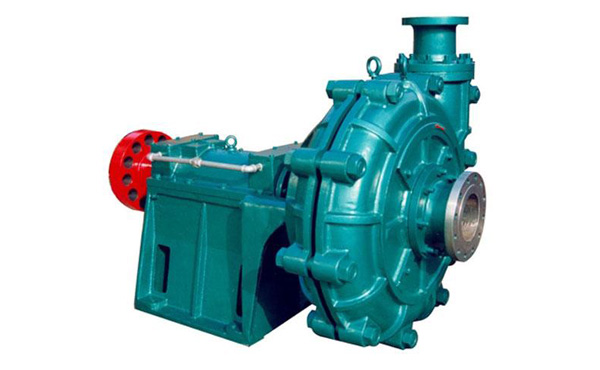

ZGB型渣漿泵
| 型號 | 配帶功率P(KW) | 流量Q(m³/h) | 揚程H(m) | 轉速n(r/min) | 最高效率η% | 汽蝕余量NPSH(m) | 葉輪直徑D(mm) | 重量（kg) |
| 65ZGB | 30-55 | 56-120 | 61-58 | 1480 | 47-62 | 4.5-3 | 390 | 1850 |
| 11-15 | 37-76 | 25-26 | 980 | 47-62 | 2.0-1.3 | 1850 | ||
| 80ZGB | 90-132 | 100-210 | 91-87 | 1480 | 48-66 | 5.2-2.7 | 485 | 2500 |
| 22-37 | 68-135 | 40-38 | 980 | 48-66 | 1.2-2.3 | 2500 | ||
| 75-90 | 93-187 | 77-73 | 1480 | 48-66 | 4.4-2.3 | 445 | 2500 | |
| 18.5-30 | 61-126 | 34-32 | 980 | 48-66 | 1.9-1.0 | 2500 | ||
| 55-75 | 82-168 | 63-59 | 1480 | 48-66 | 3.5-1.8 | 400 | 2500 | |
| 15-18.5 | 55-115 | 27-26 | 980 | 48-66 | 1.5-0.8 | 2500 | ||
| 100ZGB | 132-200 | 209-420 | 93-85 | 1480 | 57-78 | 6-2.6 | 500 | 3000 |
| 37-75 | 139-278 | 40-37 | 980 | 57-78 | 2.7-2.1 | 3000 | ||
| 90-160 | 187-378 | 78-68 | 1480 | 57-78 | 4.9-2.1 | 450 | 3000 | |
| 30-45 | 125-252 | 33-30 | 980 | 57-78 | 2.1-1.1 | 3000 | ||
| 75-110 | 168-336 | 59-55 | 1480 | 57-78 | 3.8-1.7 | 400 | 3000 | |
| 18.5-30 | 110-230 | 26-24 | 980 | 57-78 | 1.7-0.8 | 3000 | ||
| 150ZGB | 185-315 | 360-720 | 92-86 | 980 | 53-78 | 3.8-2.7 | 740 | 3450 |
| 90-160 | 272-544 | 52-49 | 740 | 53-78 | 2.2-1.5 | 3450 | ||
| 160-250 | 328-656 | 80-74 | 980 | 53-78 | 3.3-2.3 | 685 | 3450 | |
| 75-110 | 252-505 | 46-42 | 740 | 53-78 | 1.9-1.3 | 3450 | ||
| 110-200 | 305-610 | 67-64 | 980 | 53-78 | 2.8-1.1 | 630 | 3450 | |
| 55-90 | 233-466 | 38-36 | 740 | 53-78 | 1.6-0.6 | 3450 | ||
| 200ZGB | 355-450 | 600-1000 | 96-92 | 980 | 76-63 | 6.7-2.7 | 740 | 4000 |
| 160-250 | 475-870 | 55-53 | 740 | 76-63 | 3.8-1.5 | 4000 | ||
| 280-400 | 560-950 | 81-77 | 980 | 76-63 | 60.-2.4 | 700 | 4000 | |
| 132-200 | 450-839 | 48-46 | 740 | 76-63 | 3.4-1.4 | 4000 | ||
| 220-250 | 519-940 | 68-64 | 980 | 76-63 | 5.0-2.0 | 640 | 4000 | |
| 110-160 | 389-800 | 41-39 | 740 | 76-63 | 2.9-1.1 | 4000 | ||
| 250ZGB | 500-560 | 704-1408 | 95-85 | 980 | 78-63 | 7.3-3.3 | 740 | 4500 |
| 185-250 | 524-1050 | 54-49 | 740 | 78-63 | 4.2-1.9 | |||
| 355-450 | 648-1296 | 82-74 | 980 | 78-63 | 7.1-3.0 | 700 | 4500 | |
| 160-200 | 493-985 | 47-44 | 740 | 78-63 | 4.0-1.7 | 4500 | ||
| 250-355 | 597-1193 | 69-64 | 980 | 78-63 | 5.5-2.5 | 645 | 4500 | |
| 110-160 | 453-907 | 40-36 | 740 | 78-63 | 3.1-1.4 | 4500 | ||
| 300ZGB | 450-710 | 960-1919 | 95-86 | 980 | 81-68 | 6.9-3.5 | 760 | 5500 |
| 200-355 | 724-1450 | 54-49 | 740 | 81-68 | 3.9-2.0 | |||
| 355-560 | 888-1775 | 82-73 | 980 | 81-68 | 5.9-3.0 | 703 | 5500 | |
| 160-280 | 640-1341 | 42-46 | 740 | 81-68 | 3.4-1.7 | 5500 | ||
| 280-500 | 816-1632 | 69-62 | 980 | 81-68 | 5.0-2.5 | 646 | 5500 | |
| 132-220 | 616-1232 | 39-35 | 740 | 81-68 | 2.9-1.4 |
5500 |
